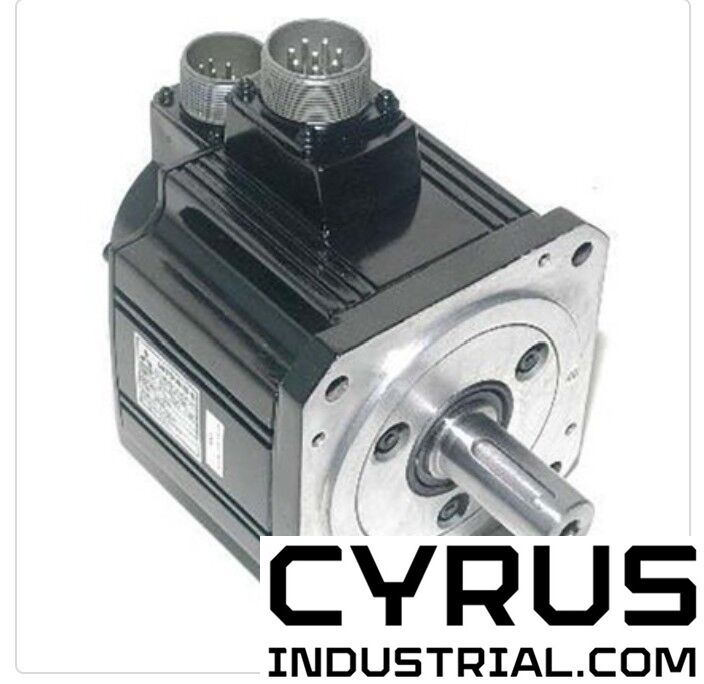

HC-SFS2024K

MITSUBISHI ELECTRIC, NEW, ORIGINAL PACKAGING, Source:SURPLUS, Status:DISCONTINUED
$982.00

Order today and receive in 4 weeks. Pay when ready:

$0.00

HC-SFS2024K
PREORDER
+ −

Description

Specifications

Primary brand
Mitsubishi Electric

Main function
AC servo motor

Product series / family name
MELSERVO J2S series

Sub-range name
HC-SF series

Functions
AC brushless rotary servo motor

Design
keyed shaft
built-in absolute feedback encod. (17-bit)
oil seal
medium inertia / medium power capacity

Supply voltage (AC)
400Vac class

Rated current
5.4A

Rated active power (kW)
2000W / 2kW

Rotational speed
2000rpm
2500rpm (maximum)

Torque
9.55Nm nominal

Maximum torque
28.5Nm

Moment of inertia
0.00425kg.m2 (42.5kg.cm2)

Mounting mode
176x176mm flange mounting

Resolution
17-bit (equivalent to 131072ppr) feedback

Degree of protection
IP65

Dimensions
H230mm x W176mm x D224mm

Net Height (mm)
230 mm

Net Width (mm)
176 mm

Net Depth (mm)
224 mm

Ambient air temperature for operation
0...+40 °C

Ambient air temperature for storage
-15°C...+70 °C

Maximum current
16.2 A

Order code / Manufacturer SKU
HC-SFS2024K

Manufacturer product status
Discontinued

Features

Net Weight:
26 pounds
Condition:
NEW
