- Reliable detection of tiny objects
- Robust stainless steel housing for use in harsh industrial environments
- Laser protection class 1
- Visible red light for simple alignment
- Precise background suppression
Product characteristics
| Type of light | red light |
|---|
| Laser protection class | 1 |
|---|
| Housing | Threaded type |
|---|
Application
| System | Background suppression |
|---|
| Function principle | Diffuse reflection sensor |
|---|
Electrical data
| Operating voltage [V] | 10...36 DC |
|---|
| Current consumption [mA] | 15 |
|---|
| Protection class | II |
|---|
| Reverse polarity protection | yes |
|---|
| Type of light | red light |
|---|
| Wave length [nm] | 655 |
|---|
| Typ. lifetime [h] | 50000 |
|---|
Outputs
| Electrical design | PNP |
|---|
| Output function | light-on/dark-on mode; (programmable) |
|---|
| Max. voltage drop switching output DC [V] | 2.5 |
|---|
| Permanent current rating of switching output DC [mA] | 200 |
|---|
| Switching frequency DC [Hz] | 1000 |
|---|
| Short-circuit protection | yes |
|---|
| Type of short-circuit protection | yes (non-latching) |
|---|
| Overload protection | yes |
|---|
Monitoring range
| Range [mm] | 20...200; (white paper 200 x 200 mm 90 % remission) |
|---|
| Range on white object (90 % remission) [mm] | 20...200 |
|---|
| Range on grey object (18 % remission) [mm] | 20...100 |
|---|
| Range on black object (6 % remission) [mm] | 20...70 |
|---|
| Range adjustable | yes |
|---|
| Diameter of the smallest detectable object [mm] | 1.5 |
|---|
| Max. light spot diameter [mm] | 1.2 |
|---|
| Background suppression available | yes |
|---|
Operating conditions
| Ambient temperature [°C] | -10...60 |
|---|
| Protection | IP 65; IP 67 |
|---|
Tests / approvals
| EMC | |
|---|
| Laser protection class | 1 |
|---|
| Notes on laser protection | | Caution: | Laser light | | laser class: | 1 | | EN / IEC60825-1:2007 | | EN / IEC60825-1:2014 | | Complies with 21 CFR 1040 except for deviations pursuant to Laser Notice No. 50, dated June 2007. |
|
|---|
| MTTF [years] | 485 |
|---|
Mechanical data
>th >Dimensions [mm]
| Weight [g] | 62.3 |
|---|
| Housing | |
|---|
| M18 x 1 / L = 72 |
| Thread designation | M18 x 1 |
|---|
| Material | stainless steel (1.4404 / 316L); PA; LCP; EPDM; TPU (urethane) |
|---|
| Lens material | |
|---|
Displays / operating elements
| Display | | Switching status | 1 x LED, yellow |
|
|---|
Accessories
Remarks
| Remarks | | cULus - Class 2 source required |
|
|---|
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Connection | Connector: 1 x M12; coding: A |
|---|
Diagrams and graphs
| | a: | sensor |
|---|
| b: | object |
|---|
| c: | background |
|---|
| x: | distance sensor/object [mm] |
|---|
| y: | min. distance object/background [mm] |
|---|
|
|---|

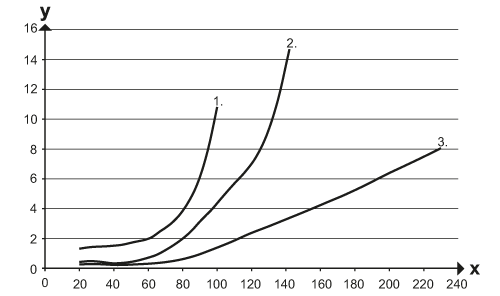

| | x: | distance sensor/object [mm] |
|---|
| y: | min. distance object/background [mm] |
|---|
| 1 = | object black (6 % remission) , Background white (90 % remission) |
|---|
| 2 = | object grey (18 % remission) , Background white (90 % remission) |
|---|
| 3 = | object white (90 % remission) , Background white (90 % remission) |
|---|
|
|---|
